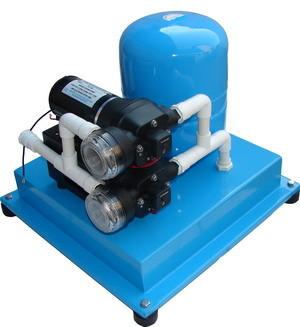

FLOWMASTER Water Booster System - High Volume

Name: FLOWMASTER Water Booster System High Volume
Brand: FLOWMASTER
Price: 1 USD

FLOWMASTER Water Booster System - High Volume Manufactures

Place of Origin : China

Brand Name : FLOWMASTER

Certification : CE;RoHS

Model Number : SDP-35X~40X

MOQ : 5pcs

Price : Negotiable

Packaging Details : 60*30*25 cm; 75kg

Delivery Time : 3-15days

Payment Terms : 100% prepaid via Paypal/Western Union/ T/T/Alipay

Supply Ability : 5000pcs/month

Theory : Vacuum Pump

Structure : Diaphragm Pump

Usage : Water

Power : Electric

Standard or Nonstandard : Nonstandard

Fuel : Electric power

Pressure : High Pressure

Application : boostering

Contact Now

FLOWMASTER^TM Water Booster System - High Volume for Low Pressure Water Supply DC/AC Power Supported

FLOWMASTER^TMWater Booster Systems are designed to provide a constant water pressure of 0 to 40 psi (0.7 to 2.7 bar) and a maximum flow rate of 9.0 gpm at 10 psi (0.7 bar). The pump is fully automatic, with built in inlet strainer, pressure switch, and check valve, and supplies smooth flow from trickle to full flow. Typical uses include applications where available water pressure is very low, and fluctuates widely. Easy installation requires only that the water lines be connected, and the power cord plugged in.

SPECIAL FEATURES

Integrated pump and accumulator tank system
Compact design installs easily in convenient locations
Available in 12, 24, 115 and 230 Volts models to service the RV,
Bus Conversion and Commercial Coach markers etc...
Can run dry without harm
FDA materials in pump and accumulator tank for drinking water
Self-priming up to 6ft. (2m)
Includes assorted ports for easy installation
Install a water strainer to protect pump from debris
FLOWMASTER Water Booster System - High Volume

SPECIFICATIONS

Model	Volts dc / ac	Open Flow gpm (lpm)	Pressure Shut Off	Amps @ 10 psi (0.7 bar)	Strainer Included	Packing Size (mm)	N.W / G.W (kg)
SDP-35AX	12 Vdc	6.6 (25.0)	35 psi (2.4 bar)	7.8	√	510×510×400	11.68 / 13.68
SDP-35BX	24 Vdc	6.6 (25.0)	35 psi (2.4 bar)	4.0	√	510×510×400	11.68 / 13.68
SDP-35MX	115 Vac	6.6 (25.0)	35 psi (2.4 bar)	1.0	√	510×510×400	12.20 / 14.30
SDP-35SX	230 Vac	6.6 (25.0)	35 psi (2.4 bar)	0.8	√	510×510×400	12.20 / 14.30
SDP-40AX	12 Vdc	9.0 (34.0)	40 psi (2.8 bar)	12.0	√	510×510×400	12.40 / 14.40
SDP-40BX	24 Vdc	9.0 (34.0)	40 psi (2.8 bar)	5.0	√	510×510×400	12.40 / 14.40
SDP-40MX	115 Vac	9.0 (34.0)	40 psi (2.8 bar)	1.0	√	510×510×400	13.30 / 15.30
SDP-40SX	230 Vac	9.0 (34.0)	40 psi (2.8 bar)	0.8	√	510×510×400	13.30 / 15.30

Accumulator Tank: 1.3 gallon (5.0 liter) & 2.1 gallon (8.0 liter)
Accumulator Tank Colors: Blue, White and Red
